%%  (ZDT3)

function f = zdt3 (x)

% 两个目标函数

% 变量数目是 30. x [0,1]

f = [];

n=length(x);

g=1+9*sum(x(2:n))/(n-1);

f(1)=x(1);

f(2)=1-sqrt(x(1)/g)-(x(1)/g)*sin(10*pi*x(1));

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

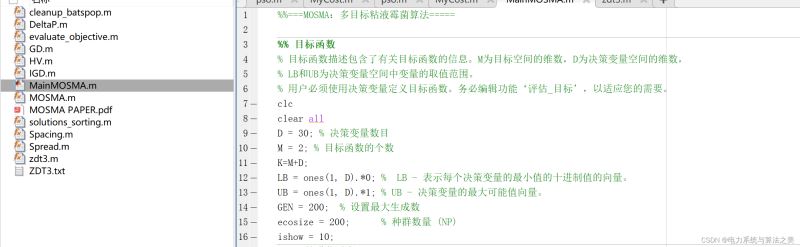

%%===MOSMA：多目标粘液霉菌算法=====

%% 目标函数

% 目标函数描述包含了有关目标函数的信息。M为目标空间的维数，D为决策变量空间的维数，

% LB和UB为决策变量空间中变量的取值范围。

% 用户必须使用决策变量定义目标函数。务必编辑功能‘评估_目标'，以适应您的需要。

clc

clear all

D = 30; % 决策变量数目

M = 2; % 目标函数的个数

K=M+D;

LB = ones(1, D).*0; %  LB - 表示每个决策变量的最小值的十进制值的向量。

UB = ones(1, D).*1; % UB - 决策变量的最大可能值向量。

GEN = 200;  % 设置最大生成数

ecosize = 200;      % 种群数量 (NP)

ishow = 10;

%% 开始进化过程

Pareto = MOSMA(D,M,LB,UB,ecosize,GEN,ishow);

Obtained_Pareto= Pareto(:,D+1:D+M); % extract data to plot

Obtained_Pareto=sortrows(Obtained_Pareto,2);

True_Pareto=load('ZDT3.txt');

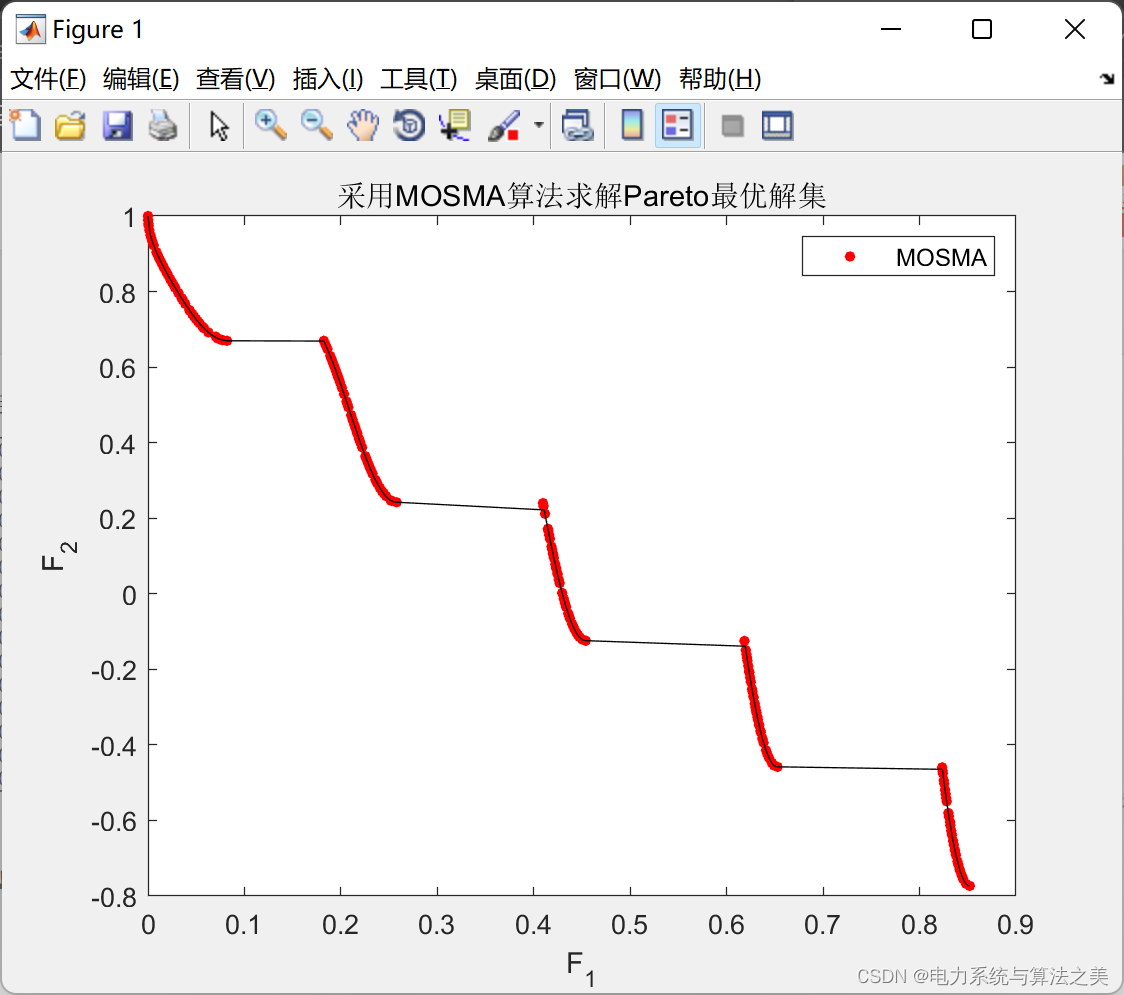

%% 可视化

%% =========两个目标函数时======================

if M == 2

    plot(Obtained_Pareto(:,1),Obtained_Pareto(:,2),'o','LineWidth',2,...

        'MarkerEdgeColor','r','MarkerSize',2);

    hold on

    plot(True_Pareto(:,1),True_Pareto(:,2),'k');

    title('采用MOSMA算法求解Pareto最优解集');

    legend('MOSMA');

    xlabel('F_1');

    ylabel('F_2');

%% =====3个目标函数时==========================

elseif M == 3

    plot3(Obtained_Pareto(:,1),Obtained_Pareto(:,2),Obtained_Pareto(:,3),'o','LineWidth',2,...

        'MarkerEdgeColor','r','MarkerSize',2);

    hold on

    plot3(Obtained_Pareto(:,1),Obtained_Pareto(:,2),Obtained_Pareto(:,3),'.','LineWidth',2,...

        'MarkerEdgeColor','k','MarkerSize',6);

    title('采用MOSMA算法求解Pareto最优解集');

    legend('MOSMA');

    xlabel('F_1');

    ylabel('F_2');

    zlabel('F_3');

end

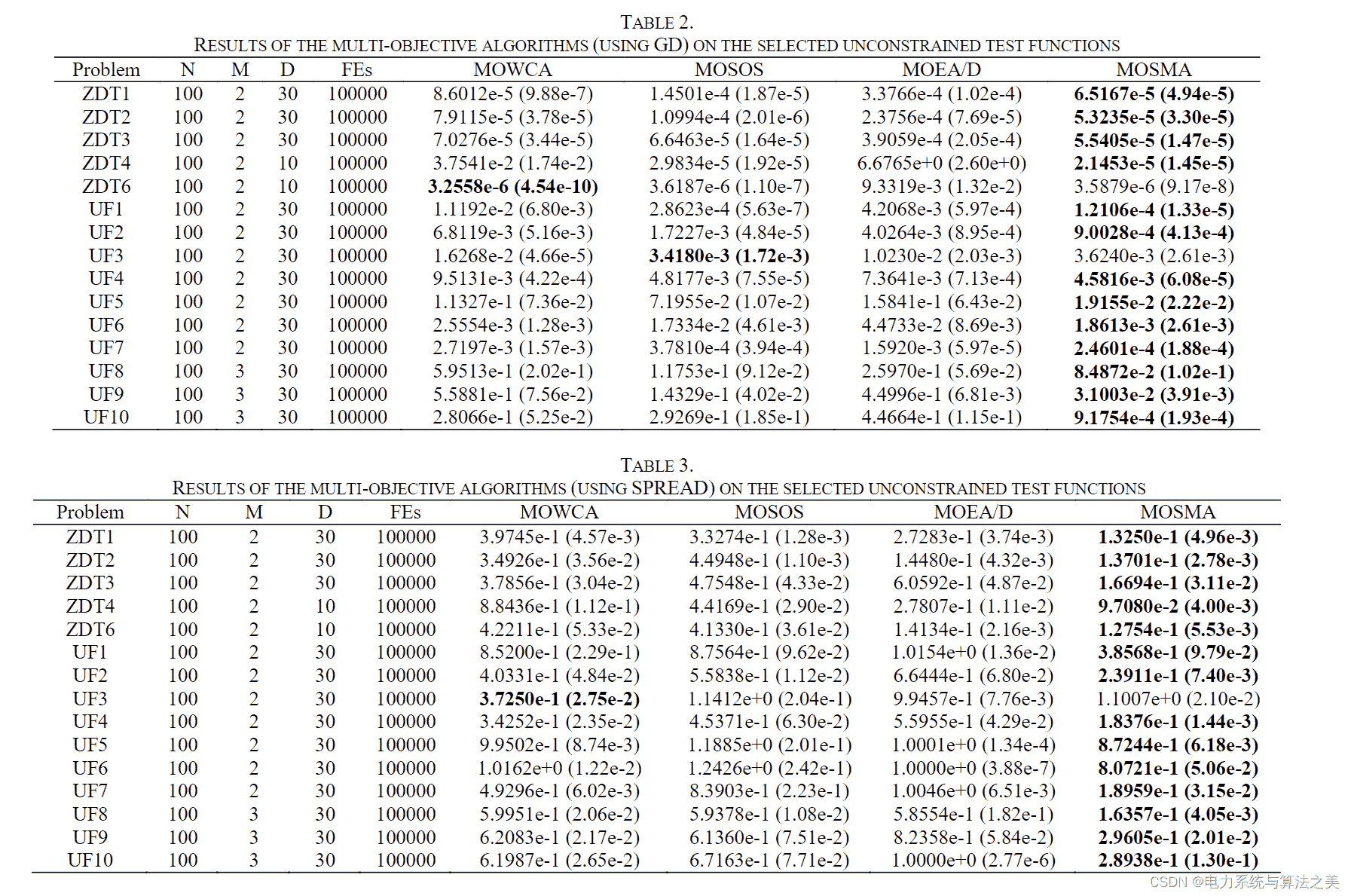

%%  Metric Value

M_IGD=IGD(Obtained_Pareto,True_Pareto);

M_GD=GD(Obtained_Pareto,True_Pareto);

M_HV=HV(Obtained_Pareto,True_Pareto);

M_Spacing=Spacing(Obtained_Pareto,True_Pareto);

M_Spread=Spread(Obtained_Pareto,True_Pareto);

M_DeltaP=DeltaP(Obtained_Pareto,True_Pareto);

display(['The IGD Metric obtained by MOSMA is     : ', num2str(M_IGD)]);

display(['The GD Metric obtained by MOSMA is      : ', num2str(M_GD)]);

display(['The HV Metric obtained by MOSMA is      : ', num2str(M_HV)]);

display(['The Spacing Metric obtained by MOSMA is : ', num2str(M_Spacing)]);

display(['The Spread Metric obtained by MOSMA is  : ', num2str(M_Spread)]);

display(['The DeltaP Metric obtained by MOSMA is  : ', num2str(M_DeltaP)]);
